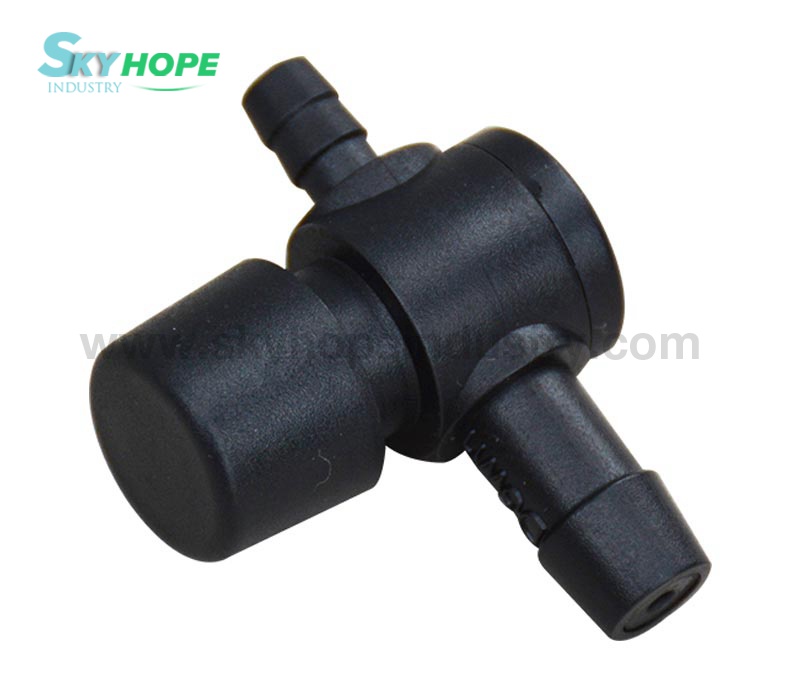

MHS-5 Plastic Push Valve
MHS-5 Plastic Push Valve
MHS-5 Plastic Push Valve

MHS-5 Plastic Push Valve

Item no: MHS-5

Place of Origin: Danyang, China

MOQ: 5000pcs

Supply Ability: 300,000pcs/month

Port: Shanghai, Ningbo etc


  • Description

▶ Inflation valve/release valve/check valve for sphygmomanometer/blood pressure monitor/hand pump use;

▶ Top quality, air tightness guarantee;

▶ Material: ABS;

 Specification

Plastic valveItem NoLengthOD on two sidesLogoRemark
MHS-146mm11mm, 5mmCreated on the mold or via sticker
MHS-2 41mm9.7mm, 5.4mm
MHS-344.4mm9.2mm, 6.7mm
MHS-446.5mm8mm, 6mm
MHS-543mm9.3mm, 5.9mm
MHS-6

37.8mm

33.2mm

11.5mm, 7mm,

11.5mm, 4.3mm

Turning design
A: big tubing OD
B:small tubing OD
MHS-766.5mm10.7mm, 4.8mm
MHS-835mm8mm, 5.4mmSpecial design
MHS-953mm7.8mm,4mm
MHS-1035.4mm11.4mm, 4.5/6.3mm
MHS-1125mm8.5mm
MHS-1222mm7.5mm, 6.5mm
MHS-1323.6mm7.5mm
MHS-1480mm8.2mm
MHS-159mm
11mm
7mm
8mm
A is inside the bulb
B is outside the bulb
